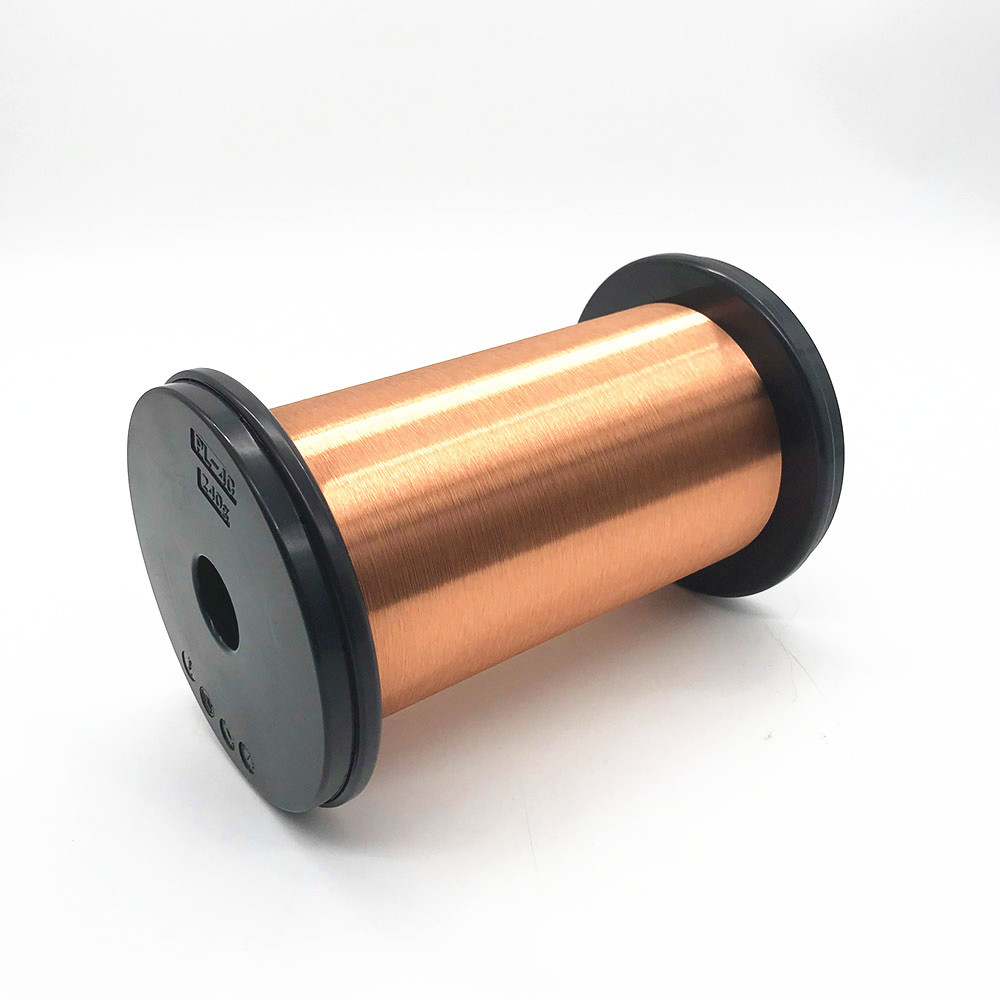

0.13mm Enameled Magnet Copper Wire For Transformer Winding FIW Wire

  • 1
  • 2

Brand Name : Ruiyuan

Model Number : FIW

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : plastic spools (PT2-PT200), wooden case

Product name : FIW

Size : 0.13mm

Conductor material : Copper

Conductor type : Solide

Insulation material : Enamel

Port : Tianjin, China

Contact Now

HIGH FREQUENCY FIW WIRE ENAMELED MAGNET COPPER WIRE

0.13mm Enameled Magnet Copper Wire For Transformer Winding FIW Wire 0.13mm Enameled Magnet Copper Wire For Transformer Winding FIW Wire

Fully insulated (FIW) zero-defect enamelled round copper wire is the wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56 / IEC60950U and NEMA MW85-C. FIW is an alternative wire to build electronic transformers typically using TIW (Triple Insulated Wires)The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc.

PRODUCT FEATURES

  • Type of insulation layer:Solderable polyurethane enameled round copper wire;

  • High thermal class 180;

  • High break down voltage, up to 15KV;

  • High insulation resistance,up to 6000Vrms,1min;

  • Solderable at 390℃, (no need to peel insulation);

  • High cut-through temperature, 250℃,2s no cut through, Air Reflow ( peak temperature 260℃), no crack；

  • Color option: natural(N)/red(R)/green(G)/blue(B)/violet(V)/brown(BR)/Yellow(Y);

  • Very good winding performance, suitable for high speed winding machine.

  • Min.diameter can be 0.04mm.

WIEGHT VS. LENGTH

Nom.Diameter(mm) FIW Weight per Km (Kg/Km) FIW Length per Kg(Km/Kg)
FIW3 FIW4 FIW5 FIW6 FIW7 FIW8 FIW9 FIW3 FIW4 FIW5 FIW6 FIW7 FIW8 FIW9
0.040 0.013 0.014 0.015 0.017 0.019 0.021 77.95 73.10 65.71 59.43 53.66 48.43
0.050 0.020 0.021 0.023 0.025 0.027 0.030 50.33 47.49 43.66 40.01 36.59 33.44
0.060 0.028 0.030 0.033 0.036 0.039 0.043 35.16 33.10 30.48 27.97 25.62 23.44
0.071 0.059 0.041 0.044 0.047 0.051 0.055 0.059 16.99 24.39 22.78| 21.22 19.73 18.32 16.99
0.080 0.049 0.052 0.055 0.059 0.063 0.068 0.073 20.27 19.31 18.10 16.92 15.79 14.71 13.69
0.090 0.062 0.065 0.069 0.073 0.077 0.082 0.088 16.08 15.41 14.56 13.72 12.91 12.13 11.39
0.100 0.076 0.080 0.085 0.090 0.096 0.102 0.109 13.07 12.54 11.83 11.13 10.45 9.80 9.19
0.120 0.110 0.114 0.121 0.128 0.136 0.144 0.153 9.10 8.74 8.27 7.82 7.37 6.95 6.54
0.140 0.149 0.154 0.162 0.171 0.181 0.192 0.203 6.73 6.48 6.16 5.84 5.53 5.22 4.93
0.160 0.193 0.200 0.210 0.221 0.234 0.247 0.261 5.18 4.99 4.75 4.51 4.28 4.06 3.84
0.180 0.244 0.253 0.265 0.278 0.293 0.309 0.325 4.10 3.96 3.78 3.59 3.42 3.24 3.07
0.200 0.300 0.310 0.324 0.339 0.355 0.373 0.392 3.33 3.23 3.09 2.95 2.81 2.68 2.55
0.250 0.467 0.482 0.502 0.525 0.549 0.575 0.603| 2.14 2.08 1.99 1.91 1.82 1.74 1.66
0.300 0.669 0.687 0.712 0.739 0.768 0.798 0.831 1.49 1.46 1.40 1.35 1.30 1.25 1.20
0.400 1.177 1.202 1.233 1.267 1.303 1.340 0.85 0.83 0.81 0.79 0.77 0.75

MAX. OVERALL DIAMETER AND MIN. BREAKDOWN VOLTAGE

Nom.Diameter(mm) Tolerance(mm) Max.Overall diameter (mm)
Grade ofFIW3 Grade ofFIW4 Grade ofFIW5 Grade ofFIW6 Grade ofFIW7 Grade ofFIW8 Grade ofFIW9
0.040 ±0.003 0.058 0.069 0.079 0.089 0.099 0.109 -
0.050 ±0.003 0.072 0.083 0.094 0.105 0.116 0.127
0.060 ±0.003 0.085 0.099 0.112 0.125 0.138 0.151 -
0.071 ±0.003 0.098 0.110 0.123 0.136 0.149 0.162 0.175
0.080 ±0.003 0.108 0.122 0.136 0.150 0.164 0.178 0.192
0.090 ±0.003 0.120 0.134 0.148 0.162 0.176 0.190 0.204
0.100 ±0.003 0.132 0.148 0.164 0.180 0.196 0.212 0.228
0.140 ±0.003 0.181 0.201 0.221 0.241 0.261 0.281 0.301
0.160 ±0.003 0.205 0.227 0.249 0.271 0.293 0.315 0.337
0.180 ±0.003 0.229 0.253 0.277 0.301 0.325 0.349 0.373
0.200 ±0.003 0.252 0.277 0.302 0.327 0.352 0.377 0.402
0.250 ±0.004 0.312 0.342 0.372 0.402 0.432 0.462 0.492
0.300 ±0.004 0.369 0.400 0.431 0.462 0.493 0.524 0.555
0.400 ±0.005 0.478 0.509 0.540 0.571 0.602 0.633 -
Nom.Diameter(mm) Tolerance(mm) Min. Breakdown voltage (V)
Grade ofFIW3 Grade ofFIW4 Grade ofFIW5 Grade ofFIW6 Grade ofFIW7 Grade ofFIW8 Grade ofFIW9
0.040 ±0.003 1458 2349 3159 3969 4779 5589 -
0.050 ±0.003 1782 2673 3564 4455 5346 6237 -
0.060 ±0.003 2025 3159 4212 5265 6318 7371 -
0.071 ±0.003 2187 3159 4212 5265 6318 7371 8424
0.080 ±0.003 2268 3402 4536 5670 6804 7938 9072
0.090 ±0.003 2430 3564 4698 5832 6966 8100 9234
0.100 ±0.003 2592 3888 5184 6480 7776 9072 10368
0.120 ±0.003 2888 4256 5624 6992 8360 9728 11096
0.140 ±0.003 3116 4636 6156 7676 9196 10716 12236
0.160 ±0.003 3420 5092 6764 8436 10108 11780 13452
0.180 ±0.003 3724 5548 7372 9196 11020 12844 14668
0.200 ±0.003 3952 5852 7752 9652 11552 13452 15352
0.250 ±0.004 4712 6992 9272 11552 13832 16112 18392
0.300 ±0.004 5244 7600 9956 12312 14668 17024 19380
0.400 ±0.005 5460 7630 9800 11970 14140 16310 -
