Solderability Colored Enamelled Copper Wire UEW Magnet Copper Winding Wire For Micro Small Motor

Name: Solderability Colored Enamelled Copper Wire UEW Magnet Copper Winding Wire For Micro Small Motor
Brand: Rvyuan
Price: 1 USD

China Solderability Colored Enamelled Copper Wire UEW Magnet Copper Winding Wire For Micro Small Motor factory

Brand Name : Rvyuan

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

MOQ : Different types with differet MOQ

Packaging Details : Spool with carton

Delivery Time : 2-15 workding days

Supply Ability : Satisfy your demand

Model Number : 130-220

Standard : JIS/NEMA/IEC

Conductor material : Copper

Thermal Class : 130-220

Style : Magnet copper wire

Size : 0.012-4.5mm

Contact Now

SOLDERABILITY COLORED COPPER WIRE UEW COPPER WINDING WIRE FOR MICRO SAMLL MOTOR

Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

FEATURES AND BENEFITS

Very good solderability that can be soldered without removal of coating.
Small tg δ value under high frequency electronic apparatus.
Easy to be dyed to different colors for identifying purpose when soldered.

APPLICATION

Used for automotive coils as relays and ignition coils. In transformers and in solenoidsSmall transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
2) Automotive sensors and coils as relais and ignition coils.
3) Generators, dry-type or oil-immersed.
4) Anti-explosion motor, air-conditioner compressor, washing machines.

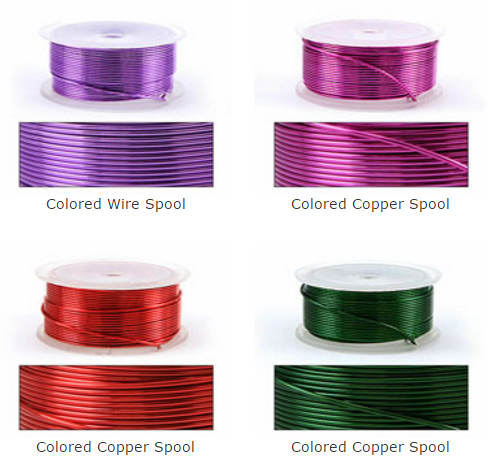

Solderability Colored Enamelled Copper Wire UEW Magnet Copper Winding Wire For Micro Small Motor

SPECIFICATION

Nominal conductor diameter	Pre-stretching %	Diameter of mandrel (mm)	Nominal conductor diameter	Pre-stretching %	Diameter of mandrel(mm)
d(mm)	Pre-stretching %	Diameter of mandrel (mm)	d(mm)	Pre-stretching %	Diameter of mandrel(mm)
d≤0.050	20①	0.15	0.250＜d≤0.280	0	0.63
0.050＜d≤0.063	15①	0.15	0.280＜d≤0.315	0	0.71
0.063＜d≤0.080	10	0.15	0.315＜d≤0.355	0	0.8
0.080＜d≤0.112	5	0.15	0.355＜d≤0.400	0	0.9
0.112＜d≤0.140	0	0.15	0.400＜d≤0.450	0	1
0.140＜d≤0.160	0	0.25	0.450＜d≤0.500	0	1.12
0.160＜d≤0.180	0	0.28	0.500＜d≤0.560	0	1.25
0.180＜d≤0.200	0	0.315	0.560＜d≤0.630	0	1.4
0.200＜d≤0.224	0	0.355	0.630＜d≤0.710	0	1.6
0.224＜d≤0.250	0	0.4	0.710＜d≤0.800	0	1.8

Product Tags:

self solderable copper wire

enameled copper magnet wire

Solderability Colored Enamelled Copper Wire UEW Magnet Copper Winding Wire For Micro Small Motor Images
