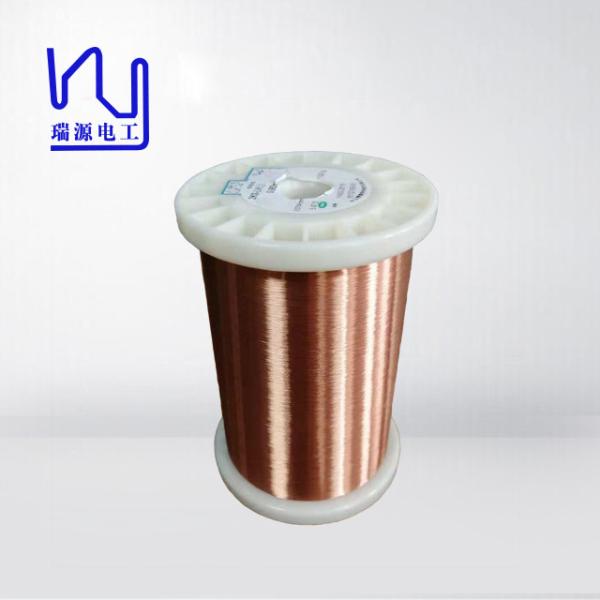

50 Awg 0.025mm Magnet Winding Wire 3uew155 Super Thin

Name: 50 Awg 0025mm Magnet Winding Wire 3uew155 Super Thin
Brand: Ruiyuan
Price: 1 USD

China 50 Awg 0.025mm Magnet Winding Wire 3uew155 Super Thin factory

Brand Name : Ruiyuan

Model Number : 0.05mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 50 AWG 0.025mm 3UEW155 Super Thin Enameled Copper Wire Magnetic Motor Winding Wire

Thermal rating : 155/180

Insulation Material : Amide imide

Diameter : 0.05mm

Conductor material : Copper

Key word : 50 AWG 0.025mm 3UEW155 Super Thin Enameled Copper Wire Magnetic Motor Winding Wire

Contact Now

50 AWG 0.025mm 3UEW155 Super Thin Enameled Copper Wire Magnetic Motor Winding Wire

50AWG enameled copper wire is uesed for various type of motor windings, with or without self bonding layer are available. Polyurethane coating, thermal grade 155/180.

  	 			Name 			50 AWG 0.025mm 3UEW155 Super Thin Enameled Copper Wire Magnetic Motor Winding Wire
 			Key word 			Enameled copper wire
 			Insulationh 			Enamel
 			Thermal rating 			155/180
 			Diameter of the enameled copper wire 			0.025mm
 			Type 			50 AWG 0.025mm 3UEW155 Super Thin Enameled Copper Wire Magnetic Motor Winding Wire
    	 			3UEW 155 0.025mm

 			Characteristics
 			Technical requests
 			Test Results

 			Sample 1(mm )
 			Sample 2(mm)

 			Appearance
 			Smooth&Clean
 			OK
 			OK

 			Conductor Diameter
 			0.025±0.001mm
 			0.0250
 			0.0250

 			Thickness of insulation
 			≥ 0.003 mm
 			0.0050
 			0.0040

 			Overall Diameter
 			≤ 0.032 mm
 			0.0300
 			0.0290

 			DC Resistance
 			≤ 38.112 Ω/m
 			35.523
 			35.489

 			Elongation
 			≥9%
 			15
 			13

 			Breakdown Voltage
 			≥ 190 V
 			551
 			399

 			Pinhole Test
 			≤8 hole/5m
 			0
 			1

 			Adherence
 			No cracks visible
 			OK
 			OK

 			Cut- through
 			200℃ 2min No breakdown
 			OK
 			OK

 			Heat Shock
 			175±5℃/30min no cracks
 			OK
 			OK

 			Solderability
 			390± 5℃ 2 Sec No slags
 			OK
 			OK



50 Awg 0.025mm Magnet Winding Wire 3uew155 Super Thin
