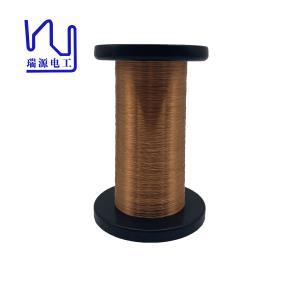

0.1 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable

Name: 01 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : FIW

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : FIW4 FI5 FIW5 Class 180 High voltage FIW wire Solderable enameled Copper Wire For High Voltage Transformer

Thermal rating : 180

Insulation Material : Enamel

Diameter : 0.1mm-0.4mm

Conductor material : Copper

Key word : FIW4 FI5 FIW5 Class 180 High voltage FIW wire Solderable enameled Copper Wire For High Voltage Transformer

Contact Now

FIW4 FI5 FIW5 Class 180 High voltage FIW wire Solderable enameled Copper Wire For High Voltage Transformer

The wider selection of FIW finished outer diameters allows customers to produce smaller transformers at a lower cost. This flexibility gives manufacturers greater freedom in production, allowing them to better adapt to market demand, improve production efficiency, reduce costs, and gain greater market share.


			Nom.Diameter(mm)

			Min. Breakdown voltage (V) 20℃

			FIW3

			FIW4

			FIW5

			FIW6

			FIW7

			FIW8

			0.100

			2106

			2673

			3969

			5265

			6561

			7857

			0.120

			2280

			2964

			4332

			5700

			7068

			8436

			0.140

			2432

			3192

			4712

			6232

			7752

			9272

			0.160

			2660

			3496

			5168

			6840

			8512

			10184

			0.180

			2888

			3800

			5624

			7448

			9272

			11096

			0.200

			3040

			4028

			5928

			7828

			9728

			11628

			0.250

			3648

			4788

			7068

			9348

			11628

			13908

			0.300

			4028

			5320

			7676

			10032

			12388

			14744

			0.400

			4200

			5530

			7700

			9870

			12040

			14210

Product Tags:

0.1 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

0.1 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable

0.1 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable

High Voltage fiw wire

0.1 mm fiw wire

Solderable enamel insulated copper wire

0.1 Mm Fiw Wire FIW4 FI5 FIW5 Class 180 High Voltage Solderable Images

Nom.Diameter(mm)	Min. Breakdown voltage (V) 20℃
Nom.Diameter(mm)	FIW3	FIW4	FIW5	FIW6	FIW7	FIW8
0.100	2106	2673	3969	5265	6561	7857
0.120	2280	2964	4332	5700	7068	8436
0.140	2432	3192	4712	6232	7752	9272
0.160	2660	3496	5168	6840	8512	10184
0.180	2888	3800	5624	7448	9272	11096
0.200	3040	4028	5928	7828	9728	11628
0.250	3648	4788	7068	9348	11628	13908
0.300	4028	5320	7676	10032	12388	14744
0.400	4200	5530	7700	9870	12040	14210
