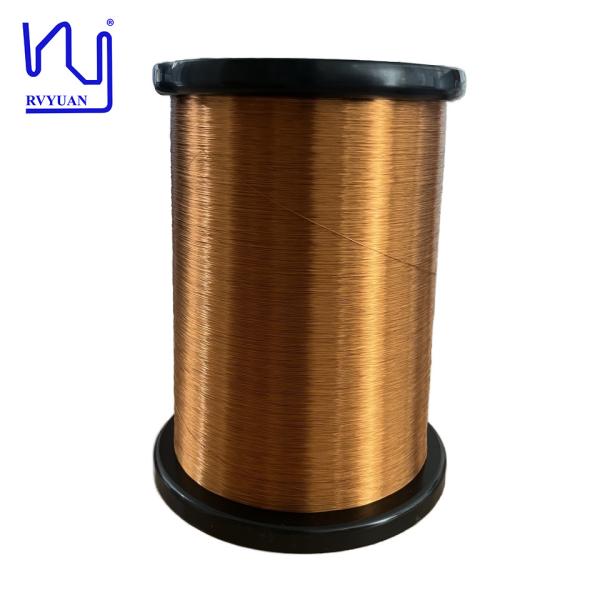

AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

Brand Name : Ruiyuan

Model Number : 0.18mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

Thermal rating : 220

Insulation Material : AIW

Diameter : 0.18mm

Conductor material : Copper

Key word : AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

Contact Now

AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

AIW enameled round copper wire stands out for its self-adhesive properties, making it extremely easy to handle. This feature not only increases winding efficiency but also ensures that the wire is firmly fixed during handling. Whether you are an engineer, hobbyist or manufacturer, this wire will simplify your work while providing excellent performance.

Test Items Requirements Test Data Result
Min Sample

Ave

Sample

Max Sample
Conductor Diameter 0.18mm ±0.003mm 0.180 0.180 0.180 OK
Thickness of Insulation ≥0.008mm 0.019 0.020 0.020 OK
Basecoat dimensions Overall dimensions Min.0.226 0.210 0.211 0.212 OK
Bonding film thickness ≤ 0.004mm 0.011 0.011 0.012 OK
DC Resistance ≤ 715Ω/km 679 680 681 OK
Elongation ≥15% 29 30 31 OK
Breakdown Voltage ≥2600V 4669 OK
Bonding Strength Min.29.4 g 50 OK

AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire
