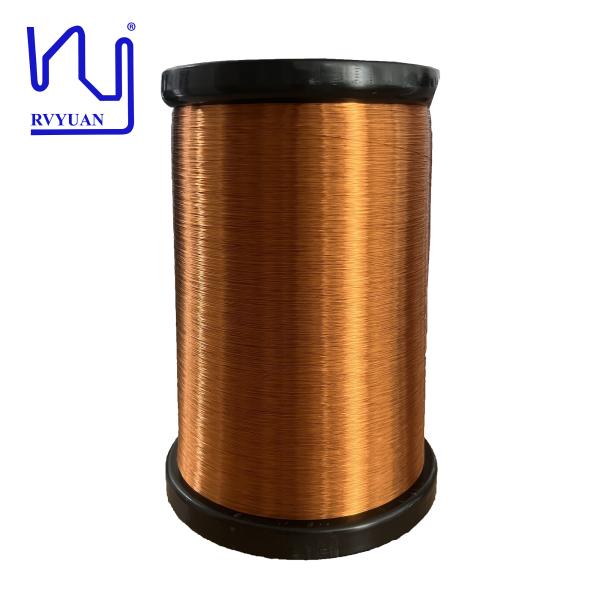

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Name: AIW 014mm High Purity Copper Wire Insulated Enameled Solid
Brand: RVYUAN
Price: 1 USD

Brand Name : RVYUAN

Model Number : 0.14mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.14mm

Conductor material : Copper

Key word : Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid

Type : Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid

Contact Now

Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid

One of the standout features of our self-bonding enameled copper wire is its exceptional high temperature resistance up to 220 degrees Celsius. This high temperature resistance makes it ideal for applications that require durability and reliability in extreme conditions.

Test Items	Requirements	Test Data			Result
Test Items	Requirements	Min Sample	Ave Sample	Max Sample	Result
Conductor Diameter	0.14mm ±0.002mm	0.140	0.140	0.140	OK
Thickness of Insulation	≥0.012mm	0.016	0.016	0.016	OK
Basecoat dimensions Overall dimensions	Min.0.170	0.167	0.167	0.168	OK
Insulation film thickness	≤ 0.012mm	0.016	0.016	0.016	OK
DC Resistance	≤ 1152Ω/km	1105	1105	1105	OK
Elongation	≥21%	27	39	29	OK
Breakdown Voltage	≥3000V	4582			OK
Bonding Strength	Min.21 g	30			OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK	OK
Solderability	/	/			OK

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid
