Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire

Name: Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.08x1700

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 1000 meter

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100000/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire

Thermal rating : 155

Diameter : 0.08mm

Conductor material : Copper

Key word : Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire

Strands : 1700

Contact Now

Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire

Customization is at the heart of our service. We understand that different projects have unique needs, so we offer the option to customize the size and strand count of triple insulated litz wire to your specifications. Whether you require a specific wire gauge or strand configuration, our dedicated technical team is ready to assist you in creating the perfect solution for your project. With a minimum order of just 1000 meters, you can easily get the high-quality wire you need without the high inventory costs.

FTIW-F-Y 0.08*1700
Specification (nominal diameter of conductor * number of strands)	Single line [mm]			LITZ WIRE
	Conductor tolerance	Min.paint film thickness	Finished outside diameter	molding	Twist [MM]
0.08*1700	0.08±0.003	0.003	0.086-0.097	0.08*68	S1=45±3
				0.08685	S2=45±3
				0.08685*5	S3=66±5

0.08*1700 Finished product line

Temperature resistance grade ℃

Straight weldability [s] (430℃±10℃)

Max.

resistance [Ω/m]

(20℃)

Max.

Withstand voltage AC to stranded wire (Leakage current 5mA)

Min.

Thickness of single insulating layer(mm)

Max.finished outside diameter[mm]

155

2.29

6000

0.11±0.01

4.80

Product Tags:

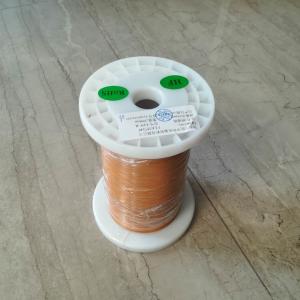

Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire Images
